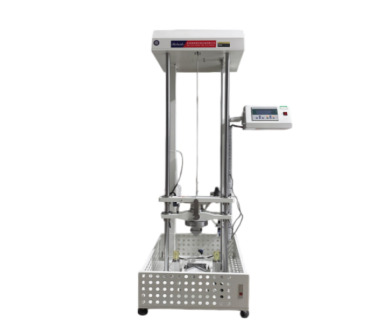

Shoe Impact Testing Machine

Get a Price/Quote

MOQ : 1 Unit

Shoe Impact Testing Machine Specification

Gas Pressure
4-6 kg/cm2

Interface Type
Keypad/Button

Features
Impact Energy Adjustment, Data Storage

Equipment Type
Impact Testing Machine

Display Type
Digital LCD

Power Supply
220V AC, 50Hz

Max Height
Up to 400 mm

Frequency
50 Hz

Hardness
Complies with industry standards

Response Time
<1 second

Humidity
45% - 85% RH

Test Range
0-50 Joules

Operating Voltage
220V

Accuracy
1%

Temperature
10C - 35C

Application
Shoe/Footwear Toe and Sole Impact Test

Automation Grade
Semi-Automatic

Port Size
Standard 8 mm pneumatic

Measuring Range
0-50 Joules

Number of Specimens
Single test at a time

Mounting Type
Floor Standing

Resolution
0.1 Joule

Specimen Size
Upto 350 mm length

Usage
Testing Shoe Impact Resistance

Capacity
Up to 5 pairs/hour

Machine Weight
Approx. 90 kg

Test Speed
Adjustable, up to 60 tests/min

Test Width
Up to 300 mm

Test Stroke
50-200 mm

Control Mode
Digital/Manual

Data Output
USB/RS232

Compliance
EN ISO 20344 / IS 15298

Hammer Drop Height
Maximum 200 mm

Impact Mass
Up to 20 kg

Safety Features
Emergency Stop, Acrylic Guard

Material of Construction
Powder Coated Steel Body

Calibration
Factory Pre-calibrated

Packaging Type
Wooden Crate

Shoe Impact Testing Machine Trade Information

Minimum Order Quantity
1 Unit

Supply Ability
10 Units Per Month

Delivery Time
7-14 Days

About Shoe Impact Testing Machine

Introducing the Sensational Shoe Impact Testing Machine-crafted with a robust, powder-coated steel body and equipped with Rare features like Digital and Manual Control Mode. Its Customizable interface and Heroic safety options, including an acrylic guard and emergency stop, guarantee Monumental protection during rigorous testing. Benefit from Special Rates as a manufacturer, exporter, or supplier in China. Experience unmatched accuracy (1%) and a fast response time (<1 second), compliant with EN ISO 20344/IS 15298. This semi-automatic marvel supports up to 5 pairs/hour, with USB/RS232 data output and pre-calibration for seamless operation.

Exceptional Features and Versatile Uses of Shoe Impact Testing Machine

This Shoe Impact Testing Machine is engineered for both general and specific use in assessing footwear toe and sole impact resistance. Featuring adjustable test speed, a digital LCD, and up to 60 tests per minute, it's ideal for precise quality control in industrial settings. Whether measuring single specimens or handling up to 350 mm lengths, its customizable operation ensures reliability and repeatability for manufacturers, laboratories, and exporters aiming for compliance with strict global standards.

Outstanding Supply Ability and Reliable Delivery of Shoe Impact Testing Machine

Harness impressive market value with globally trusted supply and export capacity. The Shoe Impact Testing Machine arrives packed in durable wooden crates, safeguarding equipment integrity in transit. Manufacturers in China ensure quick dispatch post-confirmed order and streamlined packing & dispatch procedures, minimizing delivery times for global clients. These concerted efforts make rapid integration into your production or laboratory environment possible, ensuring your testing processes suffer no unnecessary delays.

FAQ's of Shoe Impact Testing Machine:

Q: How does the Shoe Impact Testing Machine ensure safety during operation?

A: The machine is equipped with an emergency stop button and a protective acrylic guard, reducing risks during intensive testing. These features provide enhanced operator safety and help prevent accidental contact with moving parts.

Q: What are the main benefits of using this Shoe Impact Testing Machine?

A: It delivers fast, accurate, and repeatable impact resistance testing, meeting international standards. The machine's digital interface, quick response time, and data output options simplify quality assurance and reporting for footwear manufacturers.

Q: Where can this testing machine be used effectively?

A: This machine is ideal for use in footwear manufacturing facilities, research laboratories, and quality control departments needing reliable impact resistance testing for shoes, especially in high-throughput or compliance-focused environments.

Q: What is the process for calibrating or maintaining the machine?

A: The machine comes factory pre-calibrated for immediate use. Periodic maintenance includes ensuring the pneumatic and electrical connections are intact and calibrating to certification requirements when needed.

Q: How many shoe specimens can be tested at a time and what is the typical usage rate?

A: This machine tests a single specimen at a time, handling shoe sizes up to 350 mm in length. Its capacity allows up to 5 pairs per hour, balancing speed and accuracy for rigorous testing regimens.
