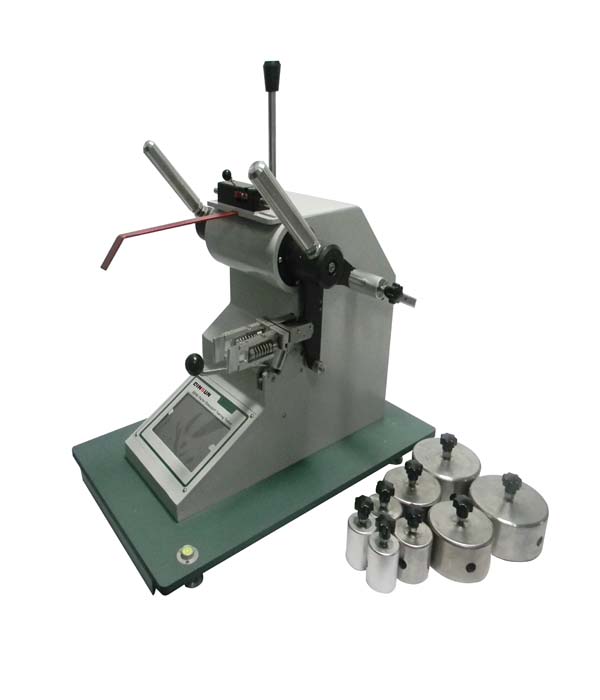

Digital Elmendorf Tearing Tester

Price 2000.0 USD ($)/ Unit

Get a Price/Quote

MOQ : 1 Unit

About Digital Elmendorf Tearing Tester

Digital Dual-Pendulum Elmendorf Tearing Tester measures the tearing strength of materials using the Elmendorf impact pendulum method. It can test the tear strength of materials under impact forces ranging from 200 to 30,000 cN.

Application

Digital Elmendorf Tearing Tester, to determine the tearing resistance strength (Elmendorf method) for various textiles. Also available for thick paper, plastic cloth and electrical insulating tapes.

Elmendorf Tear Strength Tester has three interchangeable pendulums ranging from 16,000 to 128,000 Millinewtons (mN) can be selected separately for multiple test method compliance.

Standards:

Textile Tear Test: GB/T3917.1, ASTM D1424, DIN 53862, ISO13937-1, ISO4674-2, ISO9290,

M&S P29, NF G07-149

Paper Tear Test: GB/T455, APPITA P400, ASTM D689, BS 4468, CSA D9,

DIN 53128, EN 21974,ISO 1974, JIS P8116, PAPTAC D9, SCAN P11,

SNV 198482, TAPPI T414, UNI 6444

Plastic Tear Test: GB/T11999, ISO6383-2, JIS K7128-2

Non-woven Tear Test: ASTMD5734

Technical Parameters

Parameter	Specification
Test Mode	Automatic (Digital Control)
Test Range	200 / 400 / 800 / 1.600 / 3.200 / 6.800 / 13.600 / 30.000 CN
Clamping Method	Manual (Adjustable Jaws)
Blade Material	Tool Steel (Sharp, Durable)
Clamp Spacing	2.8 0.1 mm
Tear Length	43 1 mm
Incision Length	20 1 mm
Pendulum Reset	Manual Operation
Display	LED Screen (Force/Time/Curve)
Power Supply	AC 220V 10%, 50Hz
Dimensions (LWH)	80 cm 50 cm 80 cm
Net Weight	85 kg

Advantages

Precision Elmendorf Method: Measures tear force via calibrated pendulum impact for accurate results.

Wide Test Range: 20030.000 CN (cNewton) suits light to heavy materials.

Automated Operation: Digital control simplifies testing; manual clamp ensures sample stability.

Sharp Blade Design: Tool steel blade creates clean incisions (20 1 mm) for reliable tear propagation.

Compact & Durable: 85 kg weight and robust build withstand industrial environments.

Multi-Language Display: Intuitive screen shows real-time force data and tear curves.

Features

Equipped with special aluminium profile table-board, shell processed with metal painting, all of heavy bobs are made of stainless steel.

Equipped with large screen color touch screen display control.

Pneumatic clamp with convenient operation advantage.

Imported encoder equipped to measure accurately.

Friction pendulum damp with auto revision function to improve measuring accuracy.

Adopts left and right double button start device to protect operator security.

English menu display.

Multiple measuring units including mN, cN, N, g, Kg, oz, LB optional to meet different standard requirements.

Accessories

tandard Accessories	1pc	Load A
1pc	Load B
3pcs	Load C
1pc	Sample template
1pc	English operation software
1pc	Cable connect with PC
Optional Accessories	1Set	Computer
1Set	Air Compressor
