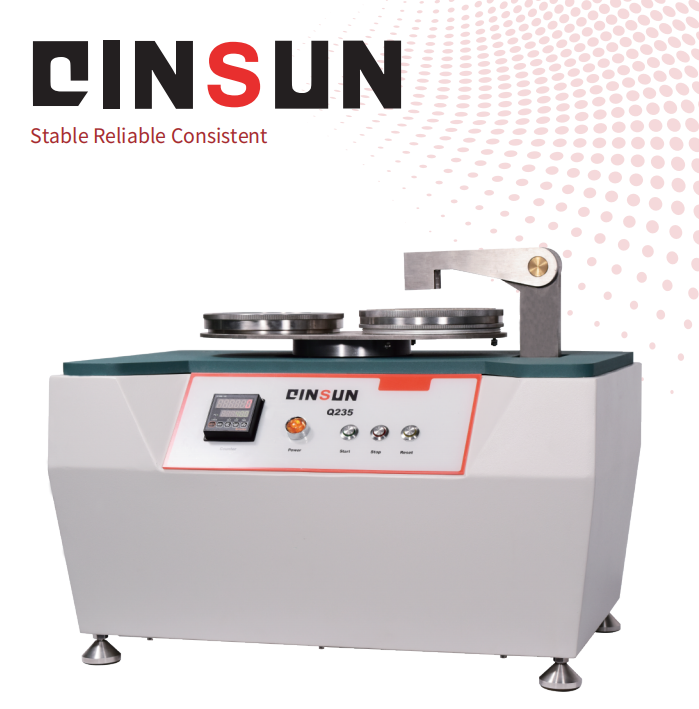

Circular Locus Pilling Tester

Price 1500.0 USD ($)/ Unit

Get a Price/Quote

MOQ : 1 Unit

About Circular Locus Pilling Tester

Circular Locus Pilling Tester is used to evaluate the pilling and fuzzing behavior of fabrics, including woolen, synthetic, pure cotton, blended, knitted, and woven materials, to assess product quality and processing effects. During testing, the fabric is rubbed against nylon brushes and abrasive materials, or alternatively, rubbed with abrasive materials in a conditioned (moisture-controlled) state.

Application

The instrument is used to test the pilling conditions of wool fabric, chemical fiber cotton, and blended, knitted, woven fabric to identify product quality and process effect. When testing, the fabric is rubbed against nylon brush and abrasive, or rubbed against abrasive only in the humidity state.

Standard

GB/T.1Determination of pilling properties of textile fabrics - Part 1: Circular trajectory method

JIGBell-type gas flow standard device verification procedures

DIN.2Testing of textiles - Wear test of flat fabrics Roll to mill

Features

1. Scientific mechanical structure, smooth rotation, no mechanical noise, no contact fatigue failure, suitable for long continuous operation.

2. The use of standard nylon brush, the rigidity of nylon wire must be uniform, so as to control the fluff effect of nylon brush.

3. Ergonomic design, the surface using a spray forming, smooth and beautiful.

Test Reference

Sample type	Pressure / cN	Number of fluff times	Number of pilling times
Synthetic fiber knitted fabric	590	150	150
Chemical fiber woven fabric	590	50	50
Military service (combed blended)	490	30	50
Combed wool fabric	780	0	600
Coarse wool fabric	490	0	50

Test Parameters

Items	Parameters
Grinding head is in contact with grinding plane	0.2mm
The parallelism of grinding head and grinding plane	0.3mm
The relative movement trajectory of grinding head and grinding plane	401mm
Nylon brush surface is flush, its height difference	<0.5mm
Grinding plane reciprocating speed	601 times/min
Weight of grinding head	490cN1%
Weight of heavy hammer	290cN1%
Weight of hammer	100cN1%
Select the number of times	1~9999
